Soundproof cotton production can be used soundproof cotton two-component low-pressure foaming machine and soundproof cotton two-component high-pressure foaming machine, the machine picture is as follows:

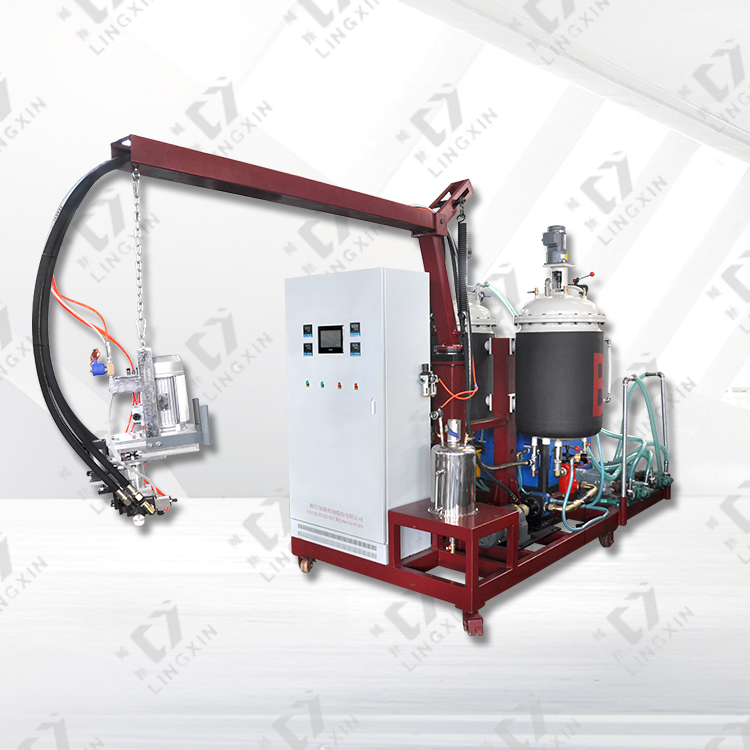

Two-component low-pressure foam machine of soundproof cotton is a new product independently developed by lingxin company, which has the characteristics of high repeat injection accuracy, even mixing, stable performance, simple operation and high production efficiency.

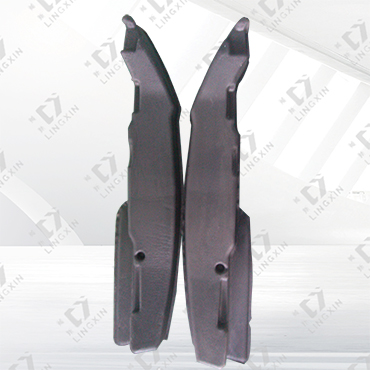

Equipment application: this machine is suitable for producing automobile soundproof cotton and other products.
Equipment technical parameters:
Item/model | total spit out quantity （g/s） | total power（kw） | Head stirring speed（r/min） | mix proportion | Overall dimensions (length X width X height) | height（kg） | |
soft bubble | RR2-700 | 125-700g | 11 | 5200 | 100：50-150 | 2200*1400*2300 | 1000 |

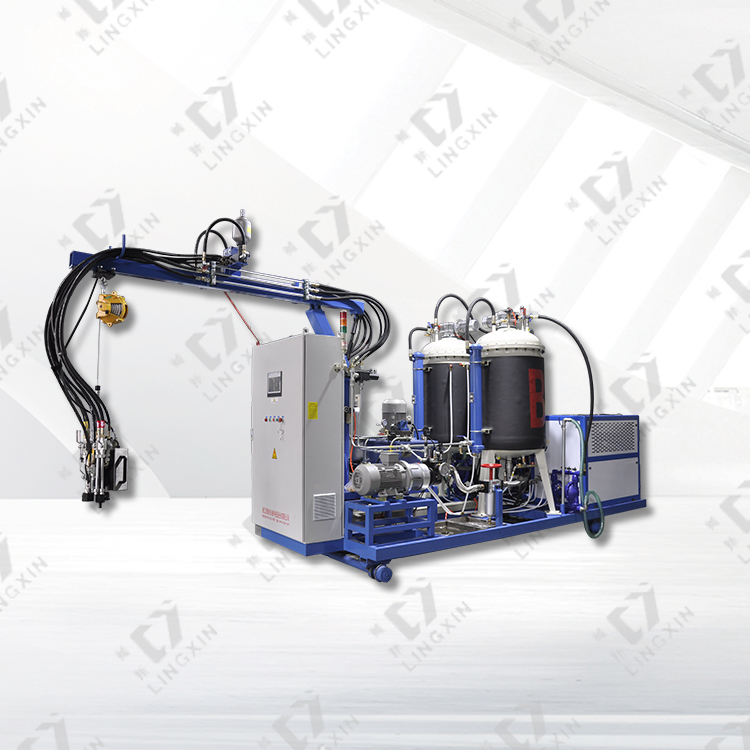

Soundproof cotton high pressure foaming machine two components is the liquid polyols and isocyanates two components of the raw materials respectively stored in two material storage tank, with two rotating axial plunger metering pump (radial) sent to the mixed system, under the action of hydraulic mixing head open, two components was injected into the small mixing chamber with a high speed, high speed collision and mixing effect, make the material liquid evenly, mixing effect is good, no clean, stable performance, easy operation, achieve the goal of high production efficiency and environmental protection.
Equipment application: this machine is suitable for producing automobile soundproof cotton and other products.
Equipment technical parameters:
Item/model | H2-L50 |
Spit out quantity（g/s） | 160-800g/s |
A tank capacity（L） | 250/500 |
B tank capacity（L） | 250/500 |
injection pressure（mpa） | 5-15 |
inject time（S） | 0.5-99.99 |
total power（kw） | 26 |
height（kg） | 1800 |
